Split AC Installation Dubai
Are you planning the split AC installation in Dubai? At Sabacots, we offer expert, affordable, reliable, and effective split AC installation across Dubai for apartments, homes, and commercial areas.
What Is A Split AC And Why Is It Ideal For Dubai?
Split air conditioners are one of two cooling systems that include an interior unit, which circulates cool air within the room and one outdoor component (compressor) that expels heat out to the outdoors. They are connected via electric cables and refrigerant lines that are routed through walls.
The extreme climate in Dubai is characterized by temperatures that often surpass 45 degrees Celsius in summer. Split ACs are the top selection for homes, villas, and commercial areas. They are able to provide accurate room-by-room temperature control, quieter operating than window units and significantly improved energy efficiency.
Dubai’s Climate Demand
The temperatures of up to 48 degrees Celsius in summer make a reliable AC an essential requirement for any house or office.
Whisper Quiet Operation
The compressor is outdoors and noise can be reduced to just 19-24 decibels.
Energy Efficient
Modern inverter-type splits reduce the cost of electricity by 30% to 40 percentages compared with older fixed-speed models.
Flexible Placement
The indoor unit can be mounted to any wall you like. There is no loss of window space and no structural adjustments are needed.
Useful link: AC maintenance in Ajman
How Split AC Installation Works In Dubai
The installation of a professional split AC in Dubai requires a well organized process that is carried out by experienced HVAC installation technicians. Sabacots is a landscaping company In Dubai that also provides professional split AC installation services in Dubai. The understanding of each stage lets the customer know what is expected and ensures that the work is completed to a high standard.
Site Survey & Unit Sizing
The technician will assess your room dimensions, the sun exposure, the insulation quality and the wall material to determine the best AC capacity (tonnage). The climate in Dubai is extremely humid, and undersizing is among the most costly errors.

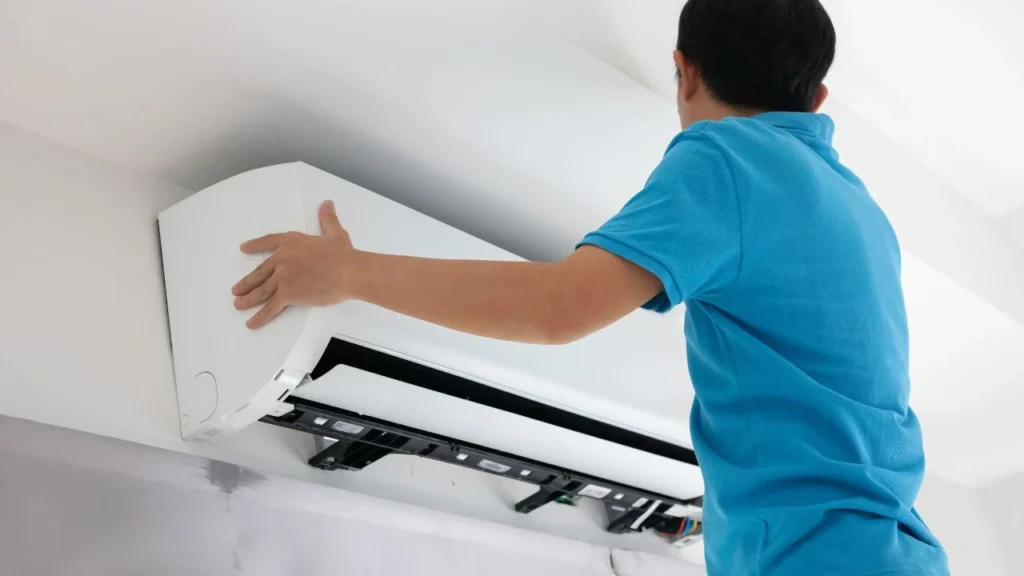

Indoor Unit Placement & Bracket Mounting
The inside unit is positioned at a height of 7-8 feet on a solid wall that can be used as a load-bearing surface, with all sides offering at least six inches of room to allow airflow. The plate that is mounted on the wall is level with precision, and even a small tilt could cause issues with drainage.
Wall Drilling & Line Routing
A hole is made in the wall with a slight downward angle to accommodate the condensate drain pipe and the refrigerant pipe. The path is selected in order to reduce the length of lines and make sure that there is no hidden wiring or plumbing.
Outdoor Unit Placement
The compressor is secured to solid concrete pads or a bracket that is anti-vibration to the outside balcony or wall. There must be at least 12 inches of clearance from all sides for the dispersal of heat.
Electrical Wiring & Circuit Setup
A circuit breaker that is dedicated to the project has been set up according to Dubai Municipality and DEWA guidelines. The correct gauge of wire and fittings that are weatherproof are vital to guarantee safety as well as warranty compliance.
Vacuuming, Refrigerant Charging & Testing
The refrigerant lines are drained by a vacuum pump in order to eliminate any water. The refrigerant (R32 or R410A) is charged in accordance with manufacturer specifications. The complete cooling and drain test is conducted to confirm that the system is functioning properly before the technician is release
Typical Installation Time
A typical one-unit split AC installation in Dubai will take approximately 4 to six hours. Installations that need longer refrigerant lines or new electrical circuits and access from high-rises could be completed in as little as 8 hours.
Split AC Installation Cost in Dubai
Split AC installation prices in Dubai depend on various variables: the unit’s capability to cool (tonnage) and the model flooring material, wall materials and the distance that the unit is from the compressor outdoors.
Installation Cost By AC Capacity
AC capacity
- 1 Ton (12,000 BTU)- Up to 150 sq ft- AED 300 – 500
- 1.5 Ton (18,000 BTU)-150 – 250 sq ft- AED 400 – 700
- 2 Ton (24,000 BTU)-250 – 350 sq ft AED 600 – 1,000
- 2.5 Ton (30,000 BTU)- 350 – 450 sq ft- AED 800 – 1,200
- 3 Ton (36,000 BTU)- 450 – 600 sq ft- AED 1,000 – 1,500
How To Choose The Right Split AC Size For Dubai
The right tonnage selection is crucial in the Dubai conditions. An undersized AC for a long time can increase electricity costs as well as fail to cool the room efficiently. Oversized units short cycle and cool too quickly, but do not remove humidity, making the space feel damp and hot.
Room Type
- Small Bedroom- Up to 150(sq ft)- 1 Ton
- Standard Bedroom-150 – 250(sq ft)-1.5 Ton
- Master Bedroom-250 – 350(sq ft)-2 Ton
- Living Room (medium)-350-450-2.5 Ton
- Large Living / Open Plan-450 – 600+-3 Ton
A Dubai-specific suggestion: Add 10-15% additional capacity to rooms facing either south or west, feature big glass windows or are located on top of the building with a ceiling directly above. The ceiling above 10 feet will also require a slight upsize.
Other services : AC installation companies in Dubai
Best Split AC Brands For Dubai
The right brand is important, particularly when you live in Dubai’s extreme climate, where the AC is on for 8 to 12 months of the year. This is how the best brands stack up:
- Daikin: Japanese engineering, exceptional performance, and outstanding after-sales service within the UAE. Excellent for durability over time.
- Mitsubishi Electric: The ultra quiet operation is complemented by smart inverter technology and outstanding construction quality. It is popular for office and bedroom rooms.
- LG: An excellent mid-range model that features dual inverter technology, Wi-Fi connectivity, and the availability of spare parts in Dubai.
Common Split AC Installation Mistakes To Avoid
A poor installation is a major reason for the majority of early AC problems in Dubai. Below are some of the common mistakes:
- Insufficiently vacuuming refrigerant lines and allowing moisture to remain within the lines causes the compressor to break down after a few months.
- The installation of the unit indoors in a position too close to the ceiling can block the flow of air and cause irregular cool and hot areas.
- Uncorrected drainage slope, water backs up, dripping through walls and creates moisture and even mold.
- Undersized electrical wiring is prone to overheating over time and eventually poses a risk of fire.
- Improper refrigerant charge — both excessive charging and undercharging decrease the efficiency and length of time.
- When the unit is placed in a fully enclosed space, it overheats the compressor and shuts down frequently.
Why Professional Installation Protects Your Warranty
Each major brand, such as Daikin, LG, and Mitsubishi, requires installation by a trained technician for the manufacturer’s warranty to be valid. Unqualified or DIY installation invalidates the warranty right away and leaves you exposed to the total repair cost.
Contact Sabacots today to schedule your Split AC installation in Dubai. This will give your space the perfect foundation for efficient cooling, improved comfort, and long-lasting performance.
Do you want to begin? Contact Sabacots now for a free cost evaluation of your site.
Other services : AC installation Sharjah
FAQ
1. How long will a split AC installation in Dubai take?
An average single-unit installation can take between 4 and six hours. Complex installations that require an electrical system overhaul, more lines of refrigerant, and high-floor access could take anywhere from 6 to 8 hours. Many units are usually accomplished in just one day.
2. How often will the split AC require maintenance in Dubai?
Due to the dusty conditions in Dubai, we recommend that you maintain the split AC every two or three times each year, once before the summer season (March-April) and again during the mid season. Cleansing your filter is recommended every month during times of high usage.
3. What is the refrigerant used in split AC within Dubai?
Many new split ACs available in Dubai make use of the R32 and R410A refrigerant. R32 is becoming more commonplace because it has a lower global warming potential (GWP) and is also more efficient with regard to energy consumption. Some older models may use R22 and R22; however, R22 is ending its use worldwide and is no longer available across the UAE.
